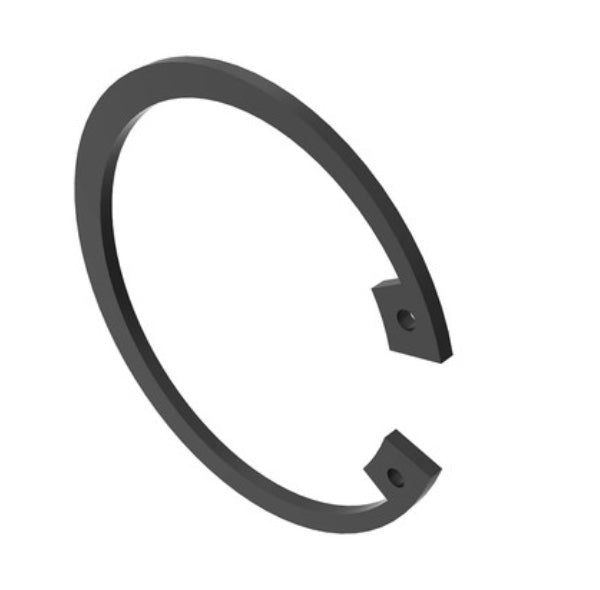

Snap Ring- 40M7201

Gripping Holes Internal Snap Ring

• Designed as an Internal Snap Ring, this product is used to securely hold components in place within a bore
• Key specifications: Free O.D. of 62.20 mm (2.45 in), radial width of 5.20 mm (0.2 in), and a bore diameter of 58 mm (2.28 in)
• Additional specs: Groove diameter of 61 mm (2.4 in), groove width of 2.15 mm (0.08 in), and a width of 2 mm (0.08 in)
• Made from high quality general steel

Covers a wide range of John Deere equipment, including:

• 9R, 9RT, and 9RX Series Tractors (390–9600)

• Construction Models (160, 200, 230C, 370E/E-II, 410/450/460/470 Series, 653G, 824K, 844/904/944 Series, 1050K)

• Engines (6135 & 6136 Series)

• 7–8 Series Tractors (7280–8600)

• Track & T-Series Models (8100–8520T)

• 9X00R/RT/RX Series (9410R–9570RX)

• Cotton Harvesters (CH950, CH960, CP690, CP770)

• Sugar Cane Harvesters (CS690, CS770)

• S-Series & X9 Combines (S680–S790, X9 1000/1100)
